BlokAlert is a sound and light warning system developed by Crosby BlokCam. When BlokAlert is attached to the crane's hook block, the device emits a specially developed light and sound that can be clearly heard and seen by people around the crane's hook block and load.
BlockAlert
Why BlokAlert?
Traditionally, the horn is often located near the cab of the crane. Therefore, it is most often located far from the load and the hook block and therefore does not effectively warn the people about the position of the hook block or the load. The same can be said for air horns or whistles when used by riggers. In both scenarios, the people's attention is diverted to where the sound is coming from, as opposed to the danger.
The solution is therefore to mount a warning system such as BlokAlert on the hook block. When the system is activated, attention is drawn to the danger, not away from it.
In addition to BlokAlert, Crosby BlokCam is also behind the smart wireless camera systems. See more about BlokCam here.
BlokAlert - Wireless Warning System with sound and light

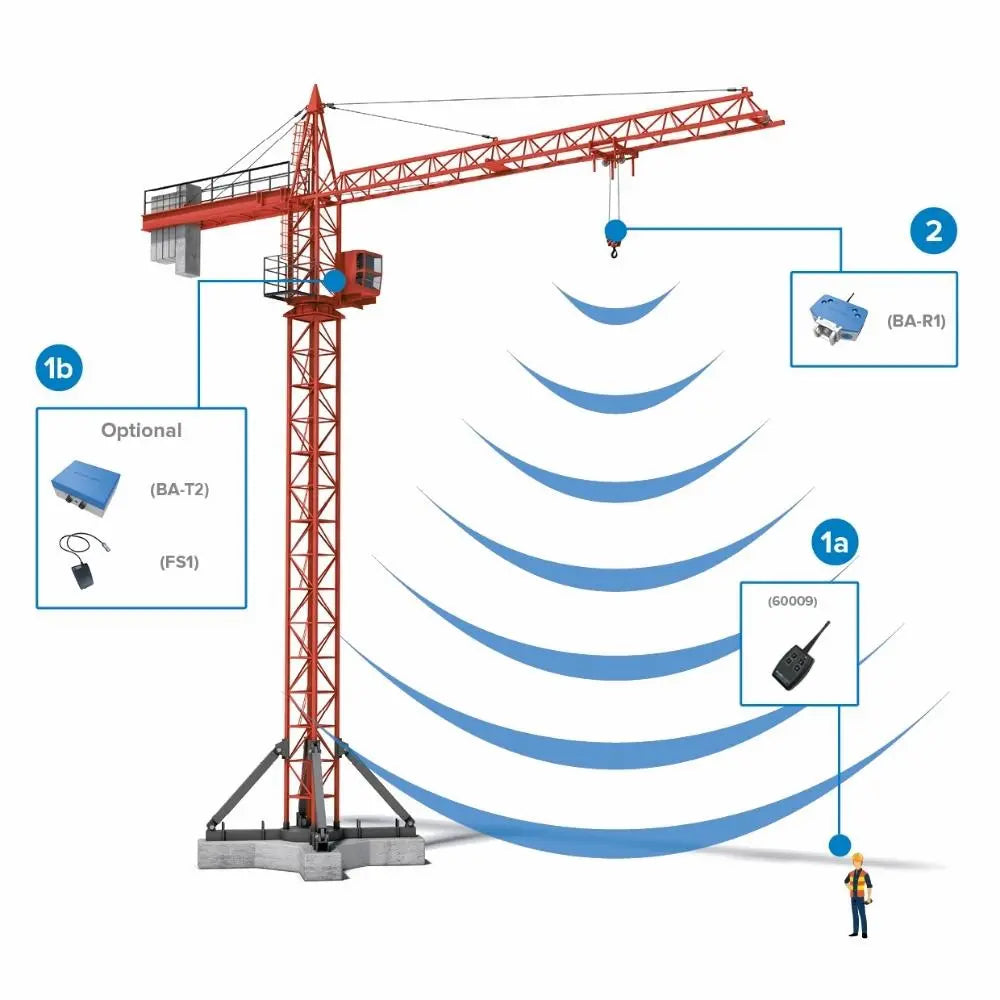

How does BlokAlert work?
In the cab: The transmitter is activated with the remote control or by a foot switch in the cab. When activated, the signal is sent to the receiver on the crane's hook block.
On the hook block: When receiving the signal from either the foot switch in the cabin or the supplied remote controls, the receiver is activated and warns people with both light and sound.
BlokAlert is suitable for all crane types.
BlokAlert features
- Powerful neodymium magnets for mounting.
- Easy to put on, take off and charge.
- Two hand transmitters per System.
- Easy to use, multi-function operation
- 2 x 78db – 107db electronic speakers.
- 180° LED light cone with four different colors.
- Pairing devices with the push of a button.
- Built-in lithium-ion battery with 124-hour battery life (lifetime depends on use and not least configuration).
- Built-in, foldable carrying handles.
- Long-range transmitter and receiver (possible distance depends on the surrounding environment).
- Custom-built aluminum housing.
- Built-in safety wire for extra safety during installation.
- LED power indicator.
- 86mm low profile design.
- Durable all-weather design, manufactured to IP67 rating.
- Operating Temperature: -10°C to 50°C (14°F to 122°F).
- CE and FCC approved.
What is included with the BlokAlert system?

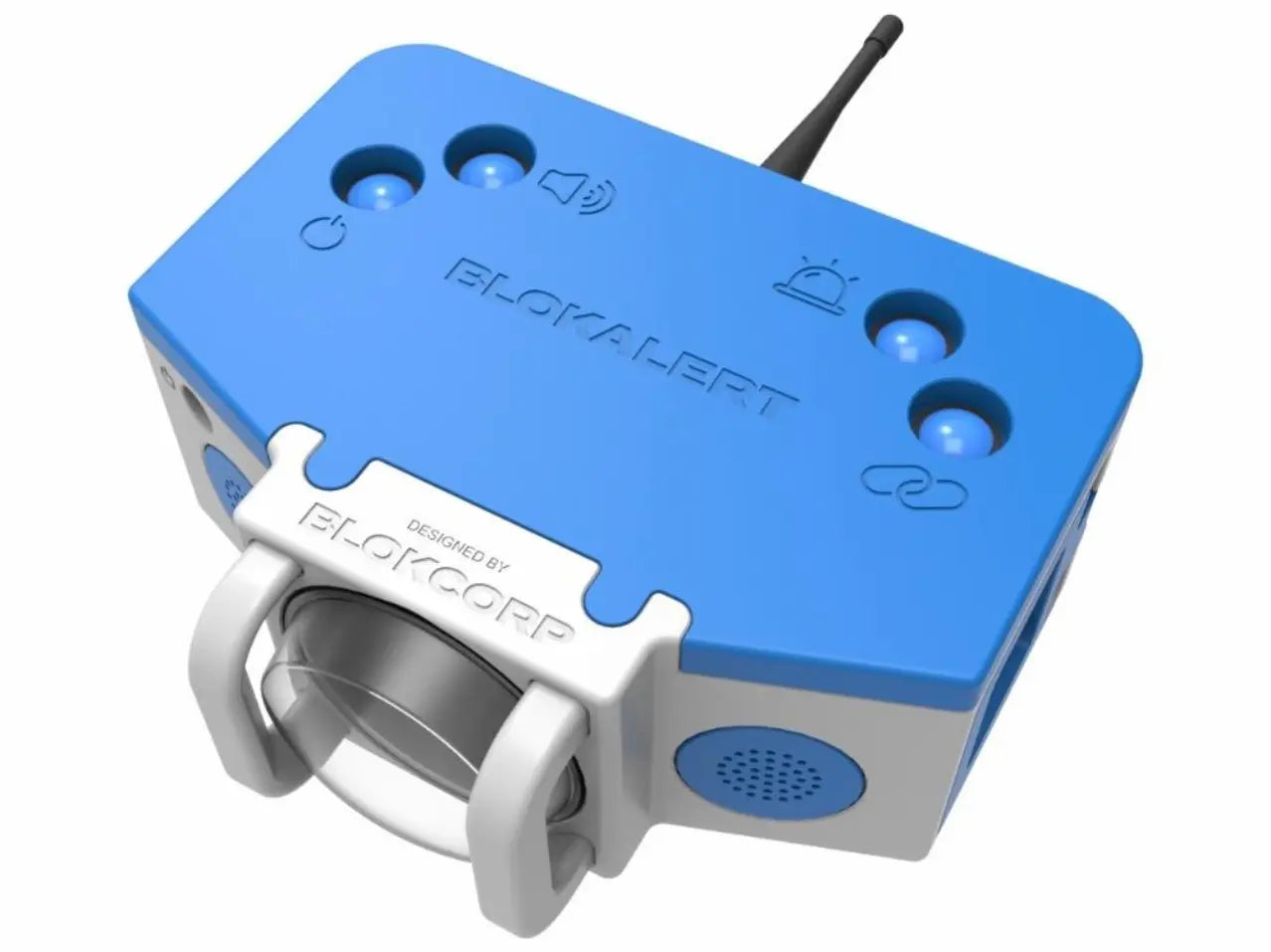

BA-R1 RECEIVER
Together with the LED light, the BlokAlert receiver is capable of giving up to 528 different audible alerts. This audiovisual warning system combines great functionality, performance and design making it a must for all lifting jobs.
Size and weight: Height: 173 mm Width: 210 mm Depth: 86 mm Weight: 3400 g.

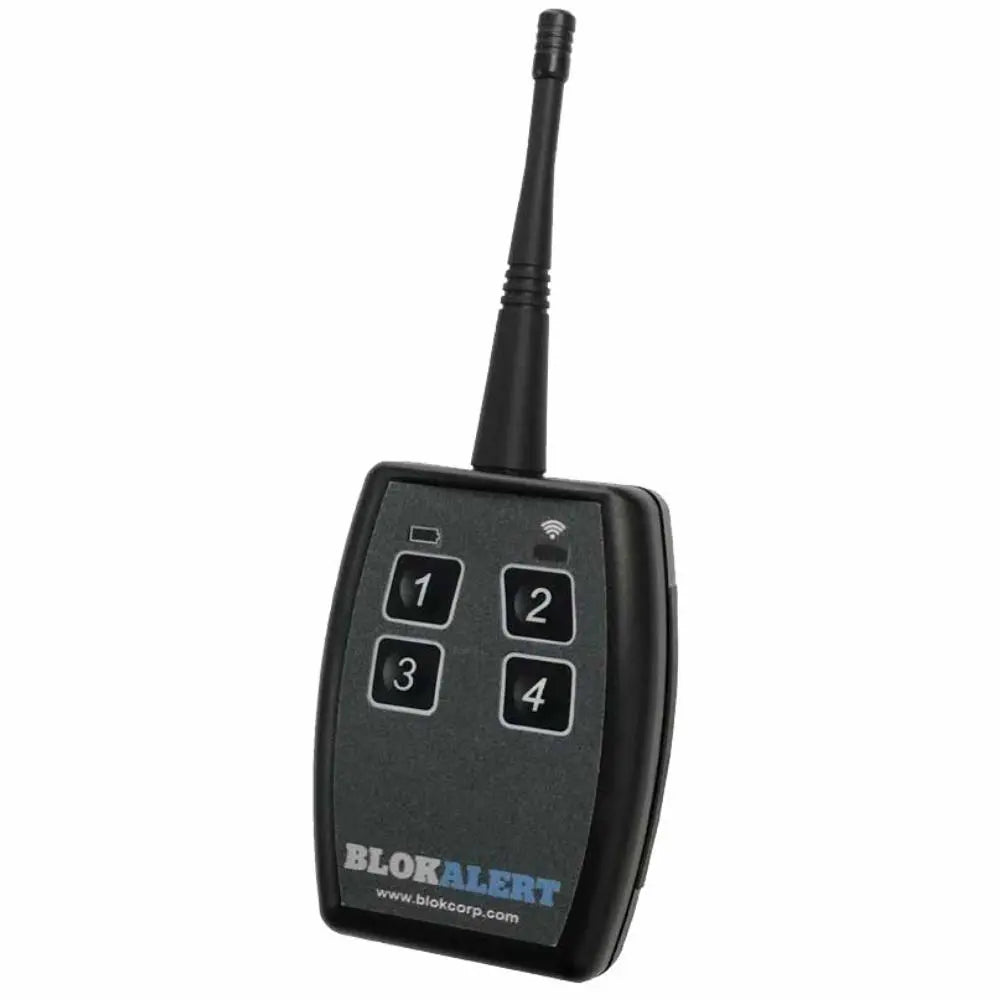

REMOTE CONTROL
BlokAlert remote control allows riggers to operate multiple BlokAlert systems across the work area.
- Two x 4 buttons per system.
- Robust design complete with lanyard.
- Remote controls with 8 and 16 buttons are available on request.
Additional equipment for BlokAlert

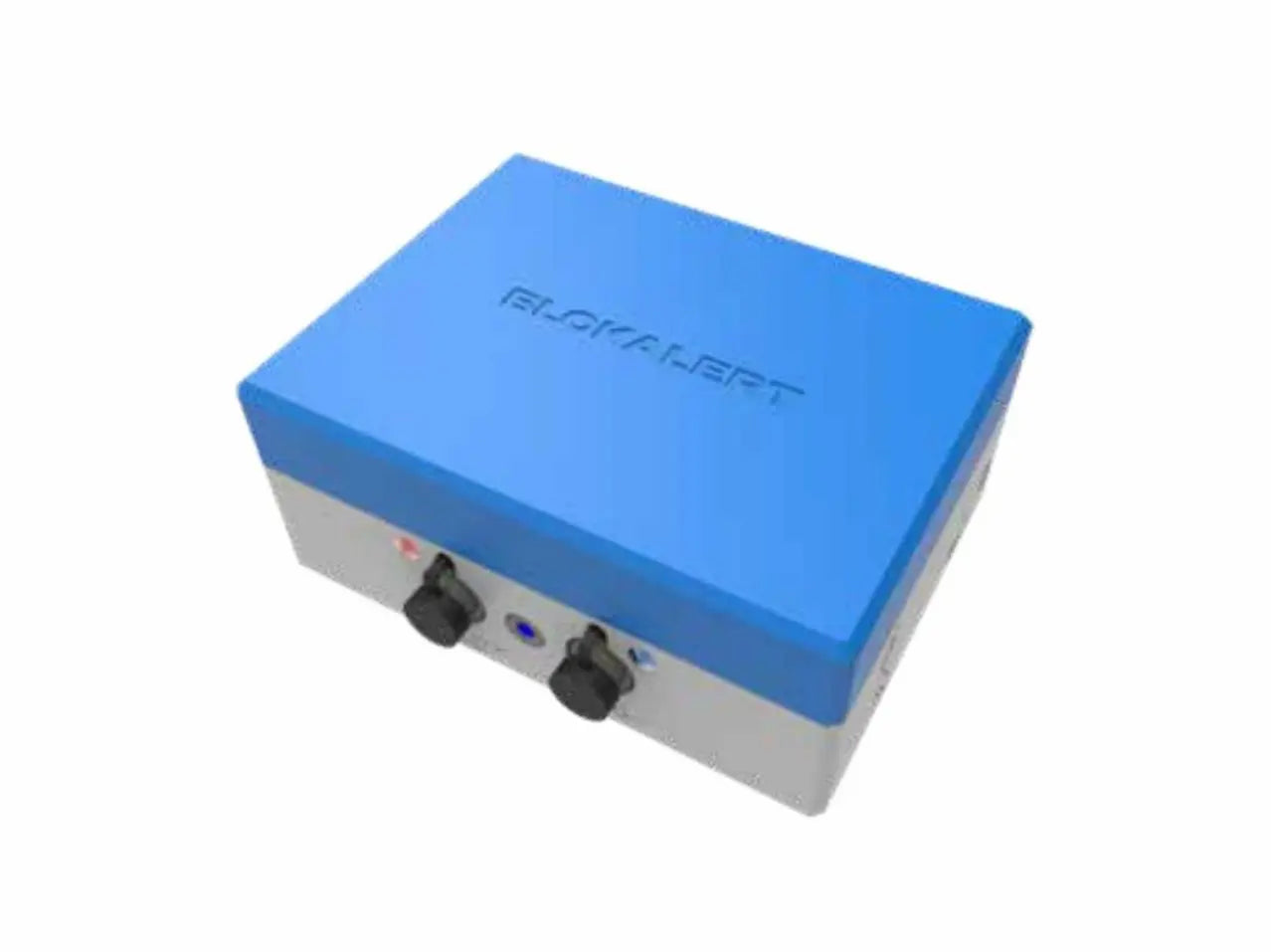

BA-T2 TRANSMITTER
Using a foot switch, the BlokAlert-BA-T2 transmitter provides the crane operator with hands-free operation of the BlokAlert system.
FS1 FOOT SWITCH
The foot switch provides hands-free operation of the BlokAlert transmitter. At the same time, it is both quick and easy to install.
